Velthec® Modular chain VC20

VC20 - PDF

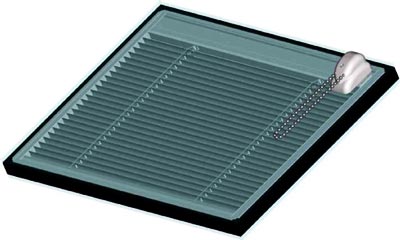

Velthec VC20 is the Venetian blind integrated within 20-mm insulating glass which, thanks to its magnetic transmission of motion, ensures complete tightness of the system.
The Venetian blind is lifted and tilted by means of a manual control device equipped with a modular chain, which is interfaced with a magnet located inside the head rail.

Benefits of the system:

  • Can be easily assembled in automatic sealing and desiccant-filling lines
  • Comes with 12.5-mm slats available in 3 standard colours
  • Light will not pass through between spacer bars and head rail due to their special pelmets
  • Internal components are long lasting, thanks to the friction function of the magnetic system
Feasibility
Height 300~2.500 mm
Width 300~2.000 mm
Max surface 2 m2 up to 33.1 internal glass thickness. For larger thickness, refer to our Engineering Dept
